Getting historical financial statistics of stock using python provides useful information of stocks particularly financial ratio such as EPS, P/E etc breakdown to span of several years. It also provides an option for user to export all the data to a .csv file. This can be achieved by pressing the “export” button on the particular stock page. However, if there is a need to retrieve a series of stock data, users will have to visit the corresponding stock page and download the data one by one.

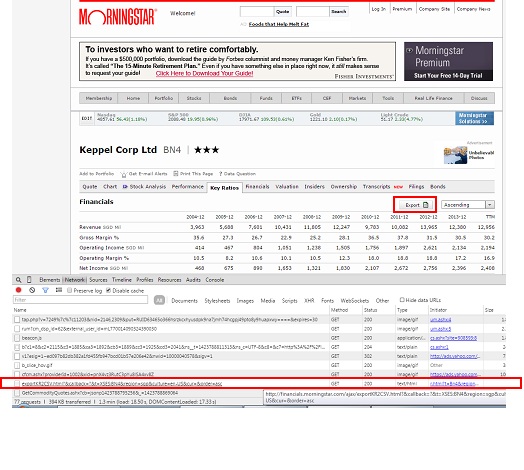

Below post is one way to retrieve the historical financial data of all target stocks. The first step will be to obtain the request url to activate the download without physically pressing the “export” button. To obtain the url, you can use the developer tools under Chrome web browser, press the network tab and monitor the ALL tab. Once the export button is pressed, the ALL tab will display the url corresponding to the request send. Example fo the url use for the request is as followed:

The blue section is the stock symbol. By changing the stock symbol, we can use the same url to retrieve all the financial data for different stocks. The url formation will be similar to what is mentioned in previous posts and the downloading can be achieved using python pattern module. After downloading the .csv file, the data can be post processed using python pandas.

Normally, the data will be easier to process if the data can be made into a Pandas Dataframe object which will then be used for joining and transforming purpose. However, the raw data downloaded (one csv for each stock) has all the headers in the first column instead of along the rows so we would need to transpose the data set. However, once transpose, the pandas will not be able to take care of columns that are non-unique. It can handle duplicate columns easily the moment it read from a csv file so the easy way is to re-write the transpose data back to the same file and read back the data again. Once read back using the Pandas.read_csv function, the result will be a dataframe object with the duplicate columns being taken care of. The columns can be rename after that for more desired column names. Below shows the section of code that does this.

    def process_dataset(self):
        """ Processed the data set by converting the csv to dataframe and attached the information for various stocks.


        ## Rows with additional headers are skipped
            self.target_stock_data_df =  pandas.read_csv(self.ms_stats_extract_temp_csv, header =2, index_col = 0, skiprows = [19,20,31,41,42,43,48,58,53,64,65,72,73,95,101,102])
            print 'problem downloading files. '
        self.target_stock_data_df = self.target_stock_data_df.transpose().reset_index()
        self.target_stock_data_df["SYMBOL"] = self.com_data_stock_portion_url
        #after transpose save back to same file and call again for column duplication problem
        self.target_stock_data_df.to_csv(self.ms_stats_extract_temp_csv_transpose, index =False)
        self.target_stock_data_df =  pandas.read_csv(self.ms_stats_extract_temp_csv_transpose)
        #rename columns
        self.target_stock_data_df.rename(columns={'Year over Year':'Revenue yoy','3-Year Average':'Revenue 3yr avg',
                                                '5-Year Average':'Revenue 5yr avg','10-Year Average':'Revenue 10yr avg',

                                                'Year over Year.1':'Operating income yoy','3-Year Average.1':'Operating income 3yr avg',
                                                '5-Year Average.1':'Operating income 5yr avg','10-Year Average.1':'Operating income 10yr avg',

                                                'Year over Year.2':'Net income yoy','3-Year Average.2':'Net income 3yr avg',
                                                '5-Year Average.2':'Net income 5yr avg','10-Year Average.2':'Net income 10yr avg',

                                                'Year over Year.3':'EPS yoy','3-Year Average.3':'EPS 3yr avg',
                                                '5-Year Average.3':'EPS 5yr avg','10-Year Average.3':'EPS 10yr avg',},
                                       inplace =True)

        if len(self.com_data_allstock_df) == 0:
            self.com_data_allstock_df = self.target_stock_data_df
            self.com_data_allstock_df = pandas.concat([self.com_data_allstock_df,self.target_stock_data_df],ignore_index =True)

Once the data frame is formed, it can be used to perform various analysis such as checking if the stock have positive EPS growth over the years or the trend of P/E over the years. Below code include the get_trend function that will look at the historic EPS over time and whether it improves over time for a particular company.

import re, os, sys, math, time, datetime, shutil
import pandas
from pattern.web import URL, DOM, plaintext, extension, Element, find_urls

class MS_StatsExtract(object):
        Using morning star ajax call.
        Can only get one stock at a time.
    def __init__(self):
        """ List of url parameters -- for url formation """
        self.com_data_start_url = ''
        self.com_data_stock_portion_url = ''
        self.com_data_stock_portion_additional_url = ''# for adding additonal str to the stock url.
        self.com_data_end_url = '&region=sgp&culture=en-US&cur=&order=asc'
        self.com_data_full_url = ''
        self.stock_list = ''#list of stock to parse.

        ## printing options
        self.__print_url = 0

        ## temp csv storage path
        self.ms_stats_extract_temp_csv = r'c:\data\temp\ms_stats.csv'
        self.ms_stats_extract_temp_csv_transpose = r'c:\data\temp\ms_stats_t.csv'

        ## Temp Results storage
        self.target_stock_data_df = object()

        ## full result storage
        self.com_data_allstock_df = pandas.DataFrame()
        self.hist_company_data_trends_df = pandas.DataFrame()

    def set_stock_sym_append_str(self, append_str):
        """ Set additional append str to stock symbol when forming stock url.
            Set to sel.cur_quotes_stock_portion_additional_url.
            Mainly to set the '.SI' for singapore stocks.
                append_str (str): additional str to append to stock symbol.
        self.com_data_stock_portion_additional_url = append_str

    def set_target_stock_url(self, stock_sym):
        """ Set the target stock. Single stock again.
            Set to self.com_data_stock_portion_url
                stock_sym (str): Stock symbol.
        self.com_data_stock_portion_url = stock_sym

    def set_stocklist(self, stocklist):
        """ Set list of stocks to be retrieved.
                stocklist (list): list of stocks to be retrieved.
        self.stock_list = stocklist

    def form_url_str(self):
        """ Form the url str necessary to get the .csv file
            May need to segregate into the various types.
                type (str): Retrieval type.
        self.com_data_full_url = self.com_data_start_url + self.com_data_stock_portion_url +\

    def get_com_data(self):
        """ Combine the cur quotes function.
            Formed the url, download the csv, put in the header. Have a dataframe object.
            Each one is one stock.
        if self.__print_url: print self.com_data_full_url

        ## here will process the data set

    def downloading_csv(self):
        """ Download the csv information for particular stock.

        self.download_fault = 0

        url = URL(self.com_data_full_url)
        f = open(self.ms_stats_extract_temp_csv, 'wb') # save as test.gif
            f.write( have problem skip
            if self.__print_download_fault: print 'Problem with processing this data: ', self.com_data_full_url
            self.download_fault =1

    def process_dataset(self):
        """ Processed the data set by converting the csv to dataframe and attached the information for various stocks.


        ## Rows with additional headers are skipped
            self.target_stock_data_df =  pandas.read_csv(self.ms_stats_extract_temp_csv, header =2, index_col = 0, skiprows = [19,20,31,41,42,43,48,58,53,64,65,72,73,95,101,102])
            print 'problem downloading files. '
        self.target_stock_data_df = self.target_stock_data_df.transpose().reset_index()
        self.target_stock_data_df["SYMBOL"] = self.com_data_stock_portion_url
        #after transpose save back to same file and call again for column duplication problem
        self.target_stock_data_df.to_csv(self.ms_stats_extract_temp_csv_transpose, index =False)
        self.target_stock_data_df =  pandas.read_csv(self.ms_stats_extract_temp_csv_transpose)
        #rename columns
        self.target_stock_data_df.rename(columns={'Year over Year':'Revenue yoy','3-Year Average':'Revenue 3yr avg',
                                                '5-Year Average':'Revenue 5yr avg','10-Year Average':'Revenue 10yr avg',

                                                'Year over Year.1':'Operating income yoy','3-Year Average.1':'Operating income 3yr avg',
                                                '5-Year Average.1':'Operating income 5yr avg','10-Year Average.1':'Operating income 10yr avg',

                                                'Year over Year.2':'Net income yoy','3-Year Average.2':'Net income 3yr avg',
                                                '5-Year Average.2':'Net income 5yr avg','10-Year Average.2':'Net income 10yr avg',

                                                'Year over Year.3':'EPS yoy','3-Year Average.3':'EPS 3yr avg',
                                                '5-Year Average.3':'EPS 5yr avg','10-Year Average.3':'EPS 10yr avg',},
                                       inplace =True)

        if len(self.com_data_allstock_df) == 0:
            self.com_data_allstock_df = self.target_stock_data_df
            self.com_data_allstock_df = pandas.concat([self.com_data_allstock_df,self.target_stock_data_df],ignore_index =True)

    def get_com_data_fr_all_stocks(self):
        """ Cater for all stocks. Each stock is parse one at a time.
        self.com_data_allstock_df = pandas.DataFrame()

        for stock in self.stock_list:
            print 'Processing stock:', stock

    ## process the data, group by each symbol and take the last 3-5 years EPS year on year??
    def get_trend_data(self):
        """ Use for getting trends data of the dataset.
            Separate to two separate type. One is looking at gain in yoy gain, which means the gain of EPS eg is higher this year over the last as
            compared to the EPS gain of last year over the previous one.
            The other is positive gain which look for gain of company over year.
            may have accel growth if starting is negative

        grouped_symbol = self.com_data_allstock_df.groupby("SYMBOL")

        self.hist_company_data_trends_df = pandas.DataFrame()
        for label in ['EPS yoy','Revenue yoy','Net income yoy']:
            for n in range(9,5,-1):
                if n == 9:
                    prev_data = grouped_symbol.nth(n)[label]
                    accel_growth_check = (prev_data == prev_data) #for EPS growht increase every eyar
                    normal_growth_check =  (prev_data >0) #for normal increase
                current_data = grouped_symbol.nth(n)[label]
                accel_growth_check = accel_growth_check & (current_data <= prev_data)
                normal_growth_check = normal_growth_check & (current_data >0)
                prev_data = current_data

            accel_growth_check = accel_growth_check.to_frame().rename(columns = {label: label + ' 4yr_accel'}).reset_index()
            normal_growth_check = normal_growth_check.to_frame().rename(columns = {label: label + ' 4yr_grow'}).reset_index()

            both_check_df =  pandas.merge(accel_growth_check, normal_growth_check, on = 'SYMBOL' )

            if len(self.hist_company_data_trends_df) ==0:
                self.hist_company_data_trends_df = both_check_df
                self.hist_company_data_trends_df = pandas.merge(self.hist_company_data_trends_df, both_check_df, on = 'SYMBOL' )

    def modify_stock_sym_in_df(self):
        """ Modify the stock sym in df especially for the Singapore stock where it require .SI to join in some cases.

        self.hist_company_data_trends_df['SYMBOL']= self.hist_company_data_trends_df['SYMBOL'].astype(str) +'.SI'

    def strip_additional_parm_fr_stocklist(self, stocklist, add_parm = '.SI'):
        """ Strip the addtional paramters from the stock list. True in case where the input is XXX.SI and morning star do not required the additioanl SI.
                stocklist (list): list of stock sym.
                add_parm (str): string to omit (.SI)

        return ['(.*)%s'%add_parm, n).group(1) for n in stocklist]

if __name__ == '__main__':

    choice  = 4

    if choice ==2:

        pp = MS_StatsExtract()
        print pp.hist_company_data_trends_df

RSS feeds Reader GUI

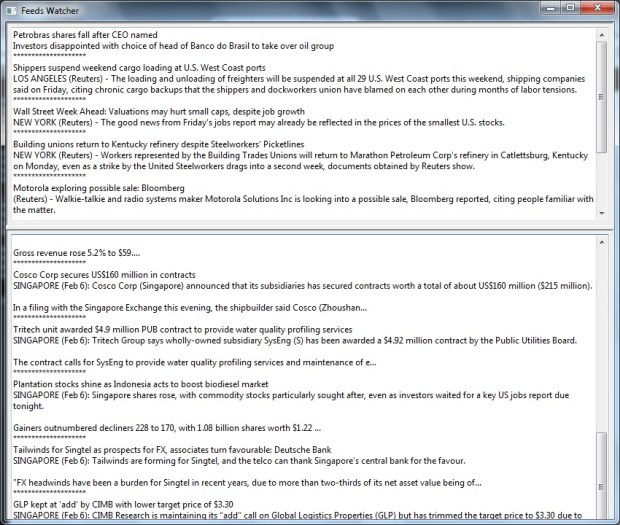

The last post mentions about retrieving RSS feeds. To allow easy viewing, a GUI is constructed. The GUI is built using wxpython and consists of few adjustable pane with scrolling enabled. The user can choose to display the different group (eg: “World” and “SG” news) in separate panels.

For live updates, a wx.timer function is added to the GUI so the data can update every x time specified by the users. This post highlights the use of wx MultiSplitterWindow, scrollable panels and wx.timer for feeds live updates.


import os, sys, re, time
import wx
from wx.lib.splitter import MultiSplitterWindow
from General_feed_extract import FeedsReader
import  wx.lib.scrolledpanel as scrolled

class SamplePane(scrolled.ScrolledPanel):
    Just a simple test window to put into the splitter.
    Set to scrollable, set to word wrap
    def __init__(self, parent, label):
        scrolled.ScrolledPanel.__init__(self, parent,style = wx.BORDER_SUNKEN)
        self.textbox = wx.TextCtrl(self, -1, label,style=wx.TE_MULTILINE )
        vbox = wx.BoxSizer(wx.VERTICAL)
        vbox.Add(self.textbox, 1, wx.ALIGN_LEFT | wx.ALL|wx.EXPAND, 5)

    def SetOtherLabel(self, label):

class MyPanel(wx.Panel):
    def __init__(self, parent):
        wx.Panel.__init__(self, parent, -1)
        self.parent = parent

        ## Add in the feeds parameters
        self.reader = FeedsReader()

        ## Add in timer
        self.timer = wx.Timer(self)
        self.Bind(wx.EVT_TIMER, self.on_timer_update_feeds, self.timer)
        self.timer.Start(30000) # start timer after a delay, time in milli sec

        splitter = MultiSplitterWindow(self, style=wx.SP_LIVE_UPDATE)
        self.splitter = splitter
        sizer = wx.BoxSizer(wx.HORIZONTAL)
        sizer.Add(splitter, 1, wx.EXPAND)

        self.world_news_panel = SamplePane(splitter, "Panel One")
        splitter.AppendWindow(self.world_news_panel, 140)

        self.SG_panel = SamplePane(splitter, "Panel Two")
        splitter.AppendWindow(self.SG_panel, 180)

        self.others_panel = SamplePane(splitter,  "Panel Three")
        splitter.AppendWindow(self.others_panel, 105)

        ## Set the orientation

        ## Updates the panel

    def get_feeds(self):
        """ Run the get feeds class. Use for getting updates of the feeds.


    def update_panels(self):
        """ Update all the panels with the updated feeds.
            Can use the set other label method


    def update_world_panel(self):
        """ Update World_panel on the World news.

        date_key = self.reader.set_last_desired_date(0)
        if self.reader.rss_results_dict_by_cat['World'].has_key(date_key):
            World_news_list = self.reader.rss_results_dict_by_cat['World'][date_key]
            World_news_str = '\n********************\n'.join(['\n'.join(n) for n in World_news_list])

    def update_SG_panel(self):
        """ Update SG_panel on the Singapore stock news.

        date_key = self.reader.set_last_desired_date(0)
        if self.reader.rss_results_dict_by_cat['SG'].has_key(date_key):
            SG_news_list = self.reader.rss_results_dict_by_cat['SG'][date_key]
            SG_news_str = '\n********************\n'.join(['\n'.join(n) for n in SG_news_list])

    def on_timer_update_feeds(self,evt):
        """ Update feeds once timer reach.
        print 'Updating....'

    def SetLiveUpdate(self, enable):
        if enable:

class MyFrame(wx.Frame):
    def __init__(self, parent, ID, title):

        wx.Frame.__init__(self, parent, ID, title,pos=(150, 20), size=(850, 720))#size and position

        self.top_panel = MyPanel(self)

class MyApp(wx.App):
    def __init__(self):
        wx.App.__init__(self,redirect =False)
        self.frame= MyFrame(None,wx.ID_ANY, "Feeds Watcher")


def run():
        app = MyApp()
    except Exception,e:
        print e
        del app

if __name__== "__main__":

The following links contains information on setting up scroll bars in wx and also working with wx.timers.

  1. wx scroll bar help
  2. wx timers

Get RSS feeds using python pattern

Python Pattern allows easy way to retrieve RSS feeds. The following script will act as a feeds reader and retrieve feeds from various sites, focusing on world news and related Singapore stock market in this example.

The pattern module has the NewsFeed() function that can take in RSS url and output the corresponding results.  The following is the description of the Newsfeed object from the pattern website “The Newsfeed object is a wrapper for Mark Pilgrim’s Universal Feed Parser. takes the URL of an RSS or Atom news feed and returns a list of Result objects.”

This will return object that has the following attributes title, link and desc. The script below takes in a dict with the different categories as key. The value are the list of RSS url belonging to that category. The script will output results in the form of dict of categories and results of each category are segregated by date key. This script allows consolidation of different feeds from various RSS sources enabling the user to further process the feeds. The printing of the feeds can be limited by the set_last_desired_date() which display only results from a certain date.

import os, re, sys, time, datetime, copy, calendar
from pattern.web import URL, extension, cache, plaintext, Newsfeed

class FeedsReader(object):
    def __init__(self):

        #For grouping to various category
        self.rss_sites_by_category_dict = {
                                            'SG':   [
        self.rss_sites = []

        ## num of feeds to parse_per_site
        self.num_feeds_parse_per_site = 100

        ## individual group storage of feeds.
        self.rss_results_dict = {} # dict with date as key
        self.rss_title_list = []

        ## full results set consist of category
        self.rss_results_dict_by_cat ={} # dict of dict
        self.rss_title_list_by_cat = {}  # dict of list

    def set_rss_sites(self, rss_site_urls):
        """ Set to self.rss_sites.
                rss_site_urls (list): list of rss site url for getting feeds.
        self.rss_sites = rss_site_urls

    def convert_date_str_to_date_key(self, date_str):
        """ Convert the date str given by twiiter [created_at] to date key in format YYYY-MM-DD.
                date_str (str): date str in format given by twitter. 'Mon Sep 29 07:00:10 +0000 2014'
                (int): date key in format YYYYMMDD
        date_list = date_str.split()

        month_dict = {v: '0'+str(k) for k,v in enumerate(calendar.month_abbr) if k <10}
        month_dict.update({v:str(k) for k,v in enumerate(calendar.month_abbr) if k >=10})

        return int(date_list[3] + month_dict[date_list[2]] + date_list[1])

    def parse_rss_sites(self):
        """ Function to parse the RSS sites.
            Results are stored in self.rss_results_dict with date as key.
        self.rss_results_dict = {}
        self.rss_title_list = []


        for rss_site_url in self.rss_sites:
            print "processing: ", rss_site_url
            for result in Newsfeed().search(rss_site_url)[:self.num_feeds_parse_per_site]:
                date_key = self.convert_date_str_to_date_key(
                if self.rss_results_dict.has_key(date_key):
                    self.rss_results_dict[date_key].append([result.title,  plaintext(result.text)])
                    self.rss_results_dict[date_key] = [[result.title,  plaintext(result.text)]]
        print 'done'

    def parse_rss_sites_by_cat(self):
        """ Iterate over the list of categories and parse the list of rss sites.
        self.rss_results_dict_by_cat ={} # dict of dict
        self.rss_title_list_by_cat = {}  # dict of list

        for cat in self.rss_sites_by_category_dict:
            print 'Processing Category: ', cat
            self.rss_results_dict_by_cat[cat] = self.rss_results_dict
            self.rss_title_list_by_cat[cat] = self.rss_title_list

    def set_last_desired_date(self, num_days = 0):
        """ Return the last date in which the results will be displayed.
            It is set to be the current date - num of days as set by users.
            Affect only self.print_feeds function.
                num_days (int): num of days prior to the current date.
                Setting to 0 will only retrieve the current date
                (int): datekey as yyyyymmdd.
        last_eff_date_list = list(( - datetime.timedelta(num_days)).timetuple()[0:3])

        if len(str(last_eff_date_list[1])) == 1:
            last_eff_date_list[1] = '0' + str(last_eff_date_list[1])

        return int(str(last_eff_date_list[0]) + last_eff_date_list[1] + str(last_eff_date_list[2]))

    def print_feeds(self, rss_results_dict):
        """ Print the RSS data results. Required the self.rss_results_dict.
                rss_results_dict (dict): dict containing date as key and title, desc as value.
        for n in rss_results_dict.keys():
            print 'Results of date: ', n
            dataset = rss_results_dict[n]
            if int(n) >= self.set_last_desired_date():
                print '===='*10
                for title,desc in dataset:
                    print title
                    print desc
                    print '--'*5

    def print_feeds_for_all_cat(self):
        """ Print feeds for all the category specified by the self.rss_results_dict_by_cat

        for cat in self.rss_results_dict_by_cat:
            print 'Printing Category: ', cat
            print "####"*18

if __name__ == '__main__':
        f = FeedsReader()
        print '=='*19

The results are as followed:

Processing Category: World
Processing Category: SG

Printing Category: World
Results of date: 20150126
Results of date: 20150127
China seeks end to gold medal fixation
‘Blind pursuit’ of success condemned as sports administrator scraps rewards for victory

Tsipras poised to unveil new Greek cabinet
Athens and international creditors dig in on Greek debt

EU threatens Russia with more sanctions
Call comes as violence in eastern Ukraine escalates


Printing Category: SG
Results of date: 20150127
Singapore shares higher; ComfortDelGro shines on broker upgrade
SINGAPORE (Jan 27): Gains in most Asian markets helped lift Singapore shares, with much of the buying centred on penny stocks.

Gainers outnumbered decliners 267 to 187, with some 1.84 billion shares worth $1.49 billion shares changin…

Job vacancies in Singapore up 8.9%
SINGAPORE (Jan 27): The number of job vacancies in Singapore swelled to 67,400 in the year to September 2014, from 61,900 the previous year, with the services industry in greatest need of workers.

The bulk of the vacancies was from c…

Scraping Company info using Yahoo Query Language (YQL) and Python

Additional stock data such as company balance sheets and financial records can be scraped from yahoo finance website as described in the previous post. An alternative way which is much faster can be done using the Yahoo Query Language (YQL) . It provides collections of data  from various sources including Yahoo finance data and enable easy query of specific data sets. The results is generated in the form of json format which itself can be easily retrieved from the url link generated from the YQL query.

The YQL provides a YQL console which provides easy way for users to key in the SQL syntax to query for particular information. For example, to obtain key company statistics such as P/E ratio, cash flow etc. The following SQL can be inputted into the console.

SELECT * FROM WHERE symbol in ("N4E.SI","BS6.SI")

Pressing the “Test” button will generate a url that will link to the json file containing all the information. Example of the url string is as below.*

The url can now be used with the PATTERN module to download and processed the json information. For reading json file, simplejson module can be used. The url can be modified easily to include more stock symbols (the text highlighted in blue). For each url, I have included about 45 stocks symbols and loop it for all the stock symbols required. Users can also customize and filter the data using standard SQL syntax.

This method is much faster compared to the direct scraping method described previously as multiple stock symbols can be processed at one go and the json data can be easily retrieved. In contrast, direct scraping can only processed single web page (or stock) at one go and require handling of XPATH to get the data correctly.

The YQL contains 1000 of tables from different websites such as Flickr, wordpress, twitter etc and the data are easily organized in table form for easy retrieval. The url string also provides additional flexibility to query more data set.

The script for this can be easily done using standard url string formation, downloading of raw data using the Pattern module, reading the data using simplejson and converting the data to dataframe using Python Pandas.

One advantage of json file is that it is basically a dict file (of eg 45 stocks symbols) and a list of dict files can be easily transformed to a pandas Data frame for further processing. Below code abstract shows the portion in which the json file is being loaded and converted to a dict to append to a list. This list is in turn convert to Dataframe object by passing the list of dicts to the Dataframe object.

    def get_datalist_fr_json(self):
            Set to self.com_data_allstock_list.
            Will keep appending without any reset.
        raw_data  = json.load(open(self.saved_json_file, 'r'))
        for indivdual_set in  raw_data['query']['results']['stats']:
            temp_dict_data = {}
            if type(indivdual_set) == str:
                #for single data
                continue # temp do not use
            for parameters in indivdual_set.keys():
                if type(indivdual_set[parameters]) == str:
                    temp_dict_data[parameters] = indivdual_set[parameters]#for symbol
                elif type(indivdual_set[parameters]) == dict:
                    if indivdual_set[parameters].has_key('content'):
                        temp_dict_data[parameters] = indivdual_set[parameters]['content']

            ## append to list

    def get_com_data_fr_all_stocks(self):
        """ Cater for situation where there is large list.
            For safeguard, clip limit to 49.
        full_list = self.replace_special_characters_in_list(self.full_stocklist_to_retrieve)
        chunk_of_list = self.break_list_to_sub_list(self.full_stocklist_to_retrieve)

        self.temp_full_data_df = None
        for n in chunk_of_list:
            # print the progress

            # set the small chunk of list

        # convert to dataframe
        self.com_data_allstock_df = pandas.DataFrame(self.com_data_allstock_list)
        self.com_data_allstock_df.rename(columns ={'symbol':'SYMBOL'}, inplace=True)


Getting historical stock quotes and dividend Info using python

The previous post describes getting stock information using python and Yahoo Finance API. This post continues to add more information using the YF API. The additional information focus on historical price trend and dividend information. The dividend information (payout consistency, date etc) are particular useful as they are not easily available for scraping.

The same concept applies here in getting the hist price and dividend information as in the previous post. First is the construction of the respective urls, then use python PATTERN module to download the .csv and finally use Pandas  to combine all the information.

The url for the hist price and dividend information are very similar. For the url formation of the hist price, it is as follows:

The blue part is the stock symbol (only one symbol can be run at a time), the pink and green portion represent the start and end date respectively. The brown portion is the interval in d,m, y. By changing the interval g = v, the dividend information as in the dividend payout at the particular date is given. The url str is as below.

For the script, the interval is easily set by using the following part of the code. The formation of url will straight away append the hist price url and dividend url in a single function.

    def set_interval_to_retrieve(self, days):
        """ Set the interval (num of days) to retrieve.
                days (int): Number of days from current date to retrieve.
        self.date_interval = days
    def calculate_start_and_end_date(self):
        """ Return the start and end (default today) based on the interval range in tuple.
                start_date_tuple : tuple in yyyy mm dd of the past date
                end_date_tuple : tupe in yyyy mm dd of current date today
        ## today date or end date
        end_date_tuple =[0:3] ## yyyy, mm, dd
        start_date_tuple = ( - datetime.timedelta(self.date_interval)).timetuple()[0:3]
        return start_date_tuple, end_date_tuple

    def form_hist_quotes_date_interval_portion_url(self):
        """ Form the date interval portion of the url
            Set to self.hist_quotes_date_interval_portion_url
            Note: add the number of the month minus 1.
        start_date_tuple, end_date_tuple = self.calculate_start_and_end_date()

        from_date_url_str = '&c=%s&a=%s&b=%s' %(start_date_tuple[0],start_date_tuple[1]-1, start_date_tuple[2])
        end_date_url_str = '&f=%s&d=%s&e=%s' %(end_date_tuple[0],end_date_tuple[1]-1, end_date_tuple[2])
        interval_str = '&g=d'
        dividend_str = '&g=v'

        self.hist_quotes_date_interval_portion_url = from_date_url_str + end_date_url_str + interval_str
        self.hist_quotes_date_dividend_portion_url = from_date_url_str + end_date_url_str + dividend_str

For the hist stock data part, the current script only retrieve the past 3 days behaviour of a particular stock. It will show whether a stock is continuously rising or falling  for the past 3 days. It simply compares the 3 day prices to see if the prices get lower or higher with each coming day. This script is limited in the aspect that it cater for only 3 days running. There is room to improve upon this aspect.

For the dividend part, it is more interesting. It will retrieve information on whether the stock have been continuing giving out dividends every year for the past four years. It will also display the number of times each year the dividends are given out. In addition, it also provides the quarter (calender year) in which the dividends are given out based on past year.

Below are the parts of the code that capture the dividends information. It make uses of the pandas Data frame. First, several columns are added for easy processing. The dates are split to year and month columns for easier date processing. In addition, the dividend months are identified for each payout and classified to specific quarters.

    def insert_yr_mth_col_to_div_df(self):
        """ Insert the year and month of dividend to div df.
            Based on the self.all_stock_div_hist_df["Date"] to get the year and mth str.
            Set back to self.all_stock_div_hist_df
        self.all_stock_div_hist_df['Div_year'] = self.all_stock_div_hist_df['Date'].map(lambda x: int(x[:4]))
        self.all_stock_div_hist_df['Div_mth'] = self.all_stock_div_hist_df['Date'].map(lambda x: int(x[6:7]))

    def insert_dividend_quarter(self):
        """ Insert the dividend quarter. Based on Calender year.

        #combined all the div mth??
        self.all_stock_div_hist_df['Div_1stQuarter'] = self.all_stock_div_hist_df['Div_mth'].isin([1,2,3,])
        self.all_stock_div_hist_df['Div_2ntQuarter'] = self.all_stock_div_hist_df['Div_mth'].isin([4,5,6])
        self.all_stock_div_hist_df['Div_3rdQuarter'] = self.all_stock_div_hist_df['Div_mth'].isin([7,8,9])
        self.all_stock_div_hist_df['Div_4thQuarter'] = self.all_stock_div_hist_df['Div_mth'].isin([10,11,12])

The next part focus on deciding whether the stock has been consistently giving out dividend for the past four years (Need to adjust the date if wish to set to longer periods.). The script will first filter the information so that the data only contain information for past 4 years. Using Pandas Groupby function, it will group the raw data by stock by year. It will count the number of year exist for the stock. If the stock has been giving out dividends yearly, it will count 4 which is one for each year. Using the aggregation “mean”, it will also calculate on average number of times the payout per year.

    def get_num_div_payout_per_year(self):
        """ Get the number of div payout per year, group by symbol and year.
            Exclude the curr year information.
        curr_yr, curr_mth = self.get_cur_year_mth()

        ## exclude the current year as dividend might not have pay out yet and keep within 4 years period
        target_div_hist_df = self.all_stock_div_hist_df[~(self.all_stock_div_hist_df['Div_year']== curr_yr)]
        target_div_hist_df = target_div_hist_df[target_div_hist_df['Div_year']>= curr_yr-4]

        ## get the div payout each year in terms of count
        div_cnt_df =  target_div_hist_df.groupby(['SYMBOL', 'Div_year']).agg("count").reset_index()
        div_payout_df = div_cnt_df.groupby('SYMBOL').agg('mean').reset_index()[['SYMBOL','Dividends']].rename(columns = {'Dividends':'NumDividendperYear'})

        ## get the number of years div pay for 4 year period --4 means every year.
        div_cnt_yr_basis_df = div_cnt_df.groupby('SYMBOL').agg('count').reset_index()[['SYMBOL','Div_year']].rename(columns = {'Div_year':'NumYearPayin4Yr'})

        ## join the data frame
        self.all_stock_consolidated_div_df = pandas.merge(div_payout_df,div_cnt_yr_basis_df, on = 'SYMBOL')

The last part focus on the quarter in which dividend payout resides. It will first filter out data by last year only. Then, it will group the data by Symbol and iterate over the rows to see the four “Div_XQuarter” rows return true. If yes, it will return true for the Div Quarter Column.

    def get_dividend_payout_quarter_df(self):
        """ Get the dividend payout quarter for each stock.
            Based on curr year -1 as guage.
            Append to the self.all_stock_consolidated_div_df
        curr_yr, curr_mth = self.get_cur_year_mth()
        target_div_hist_df = self.all_stock_div_hist_df[(self.all_stock_div_hist_df['Div_year']== curr_yr-1)]
        def check_availiable1(s):
            for n in s.values:
                if n == True:
                    return True
            return False
        target_div_hist_df = target_div_hist_df.groupby('SYMBOL').agg(check_availiable1).reset_index()[['SYMBOL','Div_1stQuarter','Div_2ntQuarter','Div_3rdQuarter','Div_4thQuarter' ]]
        self.all_stock_consolidated_div_df = pandas.merge(self.all_stock_consolidated_div_df,target_div_hist_df, on = 'SYMBOL', how = 'left')

A sample of the output is as below. Some basic information is as followed. For the Stock OV8, it only pays out 2 years in last 4 years and the payout is twice (2nd and 3rd Quarter). The price is on the rise for the past 3 days. S58 is consistently paying out every year (NumYearPayin4yr =4)  with payout twice every year. Price is pretty consistent over the last 3 days.

SYMBOL NumDividendperYear NumYearPayin4Yr Div_1stQuarter Div_2ntQuarter \
0 OV8.SI 2 2 False True
1 S58.SI 2 4 True False

Div_3rdQuarter Div_4thQuarter
0 True False
1 True False

SYMBOL Trend_3_days_drop Trend_3_days_rise
0  OV8.SI             False              True
1  S58.SI             False             False

The full script can be found at GitHub.


Filter stocks data using python

After retrieving the various stocks information from yahoo finance etc with tools described in the previous blog post, it is more meaningful to filter stocks that meet certain requirements much like the functionality of  the Google stocks screener.

The script (avaliable in GitHub) will take in a text file with the criteria specified and filter them using python Pandas. The text file is in the format such that users can easily input and retrieve the criteria description using the DictParser module described in the following blog post. In addition, the DictParser module make it easy to create the respective criteria. A sample of a particular criteria file is as below.

Current Ratio (mrq):1.5
Qtrly Earnings Growth (yoy):0

Mean Recommendation (this week):3


The DictParser object will get 3 dict based on above criteria text file. These are criteria that will filter the stocks that meet the listed requirements. The stock data after retrieved (in the form of .csv) are converted to Pandas Dataframe object for easy filtering and the stocks eventually selected will  match all the criteria within each criteria file.

Under the ‘greater’ dict, each of the key value pair mean that only stocks that have the key (eg Volume) greater than the value (eg 999999) will be selected. Under the “less” dict, only stocks that have key less than the corresponding value will be selected.  For the “compare” dict, it will not make use of the key but utilize the value (list) for each key.

Inside the value list of the “compare”, there will be 4 items. It will compare the first to second item with 3rd item as comparator and last item as the value. For example, the phrase “YEARHIGH,OPEN,greater,0” will scan stock that has “YearHigh” price greater than “open” price by at least 0 which indicates all stocks will be selected based on this particular criteria.

Users can easily add or delete criteria by conforming to the format. The script allows several criteria files to be run at one go so users can create multiple criteria files with each catering to different risk appetite as in the case of stocks. Below is part of the script that show getting the different criteria dicts using the DictParser and using the dict to filter the data.

    def get_all_criteria_fr_file(self):
        &quot;&quot;&quot; Created in format of the dictparser.
            Dict parser will contain the greater, less than ,sorting dicts for easy filtering.
            Will parse according to the self.criteria_type

            Will also set the output file name
        self.dictparser = DictParser(self.criteria_type_path_dict[self.criteria_type])
        self.criteria_dict = self.dictparser.dict_of_dict_obj
        self.modified_df = self.data_df


    def process_criteria(self):
        &quot;&quot;&quot; Process the different criteria generated.
            Present only have more and less
        greater_dict = dict()
        less_dict = dict()
        compare_dict = dict()
        print 'Processing each filter...'
        print '-'*40

        if self.criteria_dict.has_key('greater'): greater_dict =  self.criteria_dict['greater']
        if self.criteria_dict.has_key('less'): less_dict =  self.criteria_dict['less']
        if self.criteria_dict.has_key('compare'): compare_dict =  self.criteria_dict['compare']

        for n in greater_dict.keys():
            if not n in self.modified_df.columns: continue #continue if criteria not found
            self.modified_df = self.modified_df[self.modified_df[n] &gt; float(greater_dict[n][0])]
            if self.print_qty_left_aft_screen:
                self.__print_criteria_info('Greater', n)

        for n in less_dict.keys():
            if not n in self.modified_df.columns: continue #continue if criteria not found
            self.modified_df = self.modified_df[self.modified_df[n] &lt; float(less_dict[n][0])]
            if self.print_qty_left_aft_screen:

        for n in compare_dict.keys():
            first_item = compare_dict[n][0]
            sec_item = compare_dict[n][1]
            compare_type = compare_dict[n][2]
            compare_value = float(compare_dict[n][3])

            if not first_item in self.modified_df.columns: continue #continue if criteria not found
            if not sec_item in self.modified_df.columns: continue #continue if criteria not found

            if compare_type == 'greater':
                self.modified_df = self.modified_df[(self.modified_df[first_item] - self.modified_df[sec_item])&gt; compare_value]
            elif compare_type == 'less':
                self.modified_df = self.modified_df[(self.modified_df[first_item] - self.modified_df[sec_item])&lt; compare_value]

            if self.print_qty_left_aft_screen:
                self.__print_criteria_info('Compare',first_item, sec_item)

        print 'END'
        print '\nSnapshot of final df ...'

Sample output from one of the criteria is as shown below. It try to screen out stocks that provide high dividend and yet have a good fundamental (only basic parameters are listed below). The modified_df_qty will show the number of stocks left after each criteria.

 List of filter for the criteria:  dividend
VOLUME  >  999999
Qtrly Earnings Growth (yoy)  >  0
DAYSLOW  >  1.1
PERATIO  <  15
TrailingAnnualDividendYieldInPercent  <  10

Processing each filter…
Current Screen criteria:  Greater   VOLUME
Modified_df qty:  53
Current Screen criteria:  Greater   Qtrly Earnings Growth (yoy)
Modified_df qty:  48
Current Screen criteria:  Greater   DILUTEDEPS
Modified_df qty:  48
Current Screen criteria:  Greater   DAYSLOW
Modified_df qty:  24
Modified_df qty:  5
Current Screen criteria:  Less   PERATIO
Modified_df qty:  4

Snapshot of final df …
Unnamed: 0   SYMBOL              NAME LASTTRADEDATE    OPEN  \
17            4   O39.SI         OCBC Bank     10/3/2014   9.680
21            8   BN4.SI       Keppel Corp     10/3/2014  10.380
37            5  C38U.SI  CapitaMall Trust     10/3/2014   1.925
164          14   U11.SI               UOB     10/3/2014  22.300

17           9.710               9.740  3322000             4555330     9.750
21          10.440              10.400  4280000             2384510    10.410
37           1.925               1.925  5063000             7397900     1.935
164         22.270              22.440  1381000             1851720    22.470

…     Mean Recommendation (last week)  \
17     …                                 2.6
21     …                                 2.1
37     …                                 2.5
164    …                                 2.8

Change  Mean Target  Median Target  \
17                                 0.0        10.53          10.63
21   <font color=”#cc0000″>-0.1</font>        12.26          12.50
37                                 0.1         2.14           2.14
164                                0.0        24.03          23.60

High Target Low Target  No. of Brokers            Sector  \
17         12.23       7.96              22         Financial
21         13.50      10.00              23  Industrial Goods
37          2.40       1.92              21         Financial
164        26.80      22.00              23         Financial

Industry                                       company_desc
17    Money Center Banks  Oversea-Chinese Banking Corporation Limited of…
21   General Contractors  Keppel Corporation Limited primarily engages i…
37         REIT – Retail  CapitaMall Trust (CMT) is a publicly owned rea…
164   Money Center Banks  United Overseas Bank Limited provides various …

[4 rows x 70 columns]

Get Stocks tweets using Twython (Updates)

Add more functionality to the script on getting stocks tweets using Twython and python. Add in a class StockTweetsReader that inherited the base class TweetsReader.

The StockTweetReader class is able to take in a series of stock name (as in company name) and incorporate  the different search phrases such as ( <stockname> stock, <stockname> sentiment, <stockname> buy)  to form a combined twitter query.

This search phrases are joined together by the “OR” keywords and the twitter search is based on the series of queries. Below is part of code showing the joining of stock name to the additional parts and which the phrases will eventually be joined with the “OR” operator. The final query will look something like <stockname> OR <stockname> shares OR <stockname> stock etc based on the modified part of the list as [”,’shares’,’stock’, ‘Sentiment’, ‘buy’, ‘sell’]

    self.modified_part_search_list = ['','shares','stock', 'Sentiment', 'buy', 'sell']
    def set_search_list_and_form_search_query(self):
        """ Set the search list for individual stocks.
            Set to self.search_list and self.twitter_search_query.
        self.search_list = ['&quot;' + self.target_stock + ' ' + n + '&quot;'for n in self.modified_part_search_list]

After iterating through the series of stocks symbols, it will compute the number of tweets, group by date, for each company or stock name to see any sudden spike in interest of the particular stock at any given date. Sample of the tweets count results from  a series of Singapore stocks are shown below:

 Processing stock: Sembcorp Ind
Processing stock: Mapletree Com Tr
Processing stock: Riverstone
20141006 14
20141007 86
Processing stock: NeraTel
20140930 3
Processing stock: Amtek Engg
Processing stock: Fortune Reit HKD
Processing stock: SATS
20141007 100
Processing stock: UOB Kay Hian
20141001 1
20141003 2
Processing stock: CapitaR China Tr
Processing stock: LantroVision
Processing stock: Sim Lian
20140929 1
20141001 2
20141005 1

There are currently limitation of the results due to API limitation. One is that the query is limited to 100 results and that it is limited to recent tweets (maybe capped within a month or two period). The other is that for short form stock name it may get other tweets having the same short form as the stockname or it might get stuff irrelevant of the stock news eg SATS which has 100 tweets in a single day.

The updated script is found in GitHub. It may need certain workaround to resolve some of the limitations observed.

Get Stocks tweets using Twython

Twython is a python twitter API for getting tweets as well as performing more advanced features such as posting or updating status. A particular project of mine requires monitoring stock tweets in the hope that it will help to give more insight about the particular stock. One of the way, I thinking,  is to detect sudden rise in number of tweets for a particular stock for a particular day which signify increased attention or activities of that stock.

The script required authentication from Twitter hence requiring a twitter account. We just be needing the OAuth2 authentication, which is sufficient for only requesting feeds. Twython have described in their documentation on the setting up of the various authorization. After setting up, querying the search is relatively easy which can be found in the following tutorial. Additional parameters of the search function can also be found in the website.

A sample of a script that scan based on series of keywords is as below. The script will formed the search query string based on the include_search_list and ignore items based on the exclude list. More advanced usage of the different query method can be found in the tutorial.. The items in the include_search_list are joined by the “OR” words. Similarly, the items in the exclude_list is joined by “-” , meaning the tweets that have the phrases will be excluded from the search results.

The date extracted from the search function under “created_at” are modified to a date_key for easy comparison. Hence, by grouping the date_key, we can know the number of tweets for the particular stock for each day. Any unusual sign or increased activities can then be noted. Below code shows the query method used for the twitter search function.

    def perform_twitter_search(self):
        """Perform twitter search by calling the function.
            Ensure the setting for search such as lang, count are being set.
            Will store the create date and the contents of each tweets.
        for n in, lang = self.lang,
                                         count= self.result_count, result_type = self.result_type)[&quot;statuses&quot;]:
            # store the date
            date_key =  self.convert_date_str_to_date_key(n['created_at'])
            contents = n['text'].encode(errors = 'ignore')
            self.search_results.append([date_key, contents])

To convert the date str to date key for easy processing, the calendar module is used to convert the month to integer and eventually join with the year str and day str.

    def convert_date_str_to_date_key(self, date_str):
        """Convert the date str given by twiiter [created_at] to date key in format YYYY-MM-DD.
                date_str (str): date str in format given by twitter. 'Mon Sep 29 07:00:10 +0000 2014'
                (int): date key in format YYYYMMDD
        date_list = date_str.split()

        month_dict = {v: '0'+str(k) for k,v in enumerate(calendar.month_abbr) if k &lt;10}
        month_dict.update({v:str(k) for k,v in enumerate(calendar.month_abbr) if k &gt;=10})

        return int(date_list[5] + month_dict[date_list[1]] + date_list[2])

To count the number of tweets for a particular day, pandas module is used in this case but other method can do the job too.

    def count_num_tweets_per_day(self):
        """ Count the number of tweets per day present. Only include the days where there are at least one tweets,.
        day_info = [n[0] for n in self.search_results]
        date_df = pandas.DataFrame(day_info)
        grouped_date_info = date_df.groupby(0).size()
        date_group_data = zip(list(grouped_date_info.index), list(grouped_date_info.values))
        for date, count in date_group_data:
            print date,' ', count

The full script is found in GitHub. Note that there seems to have some limitations or number tweets from using Twitter API compared to the search results displayed from the main Twitter interface. This poses some limitations to the information the program can provide.

Direct Scraping Stock Data from Yahoo Finance

The previous post on scraping finance data from yahoo finance uses  Yahoo Finance API to retrieve stocks data in the form of csv file. However, this is limited to the properties or the extent of data the API is able to provide. In order to retrieve more data such as analyst opinion or company basic summary, it is required to scrape the website directly.

The following script will be able to scrape the information that the  Yahoo Finance API is not able to provide. It makes use of the PATTERN module web dom and css selector object/function. For now, the script is able to scrape the analyst opinion, company key statistics (not found in yahoo API) such as debt, current ratio, type of industry and finally the company desc. The same concept can be applied to other desired data.

The class in the script go through a series of steps as described. For a series of stocks symbol, scan through all the URLs given and scrape the page for required information. The class will have three dictionaries. The first is the start URLs to combine with the stock symbol for query, the CSS selector used for retrieving the parameters required and lastly the dict containing the method of parsing for each of the URL. Append the results for each symbol and return as combined Pandas data frame which can be used to join to other data set. Below is the snapshot of the different dictionaries described above.

        ## Dict for different type of parsing. Starl url will differ.
        self.start_url_dict = {
                                'Company_desc': '',
                                'key_stats': '',

        ## CSS selector for dom objects mainly for parsing the results.
        self.css_selector_dict = {
                                'Company_desc': 'div#yfi_business_summary div[class="bd"]',
                                'analyst_opinion':['td[class="yfnc_tablehead1"]','td[class="yfnc_tabledata1"]'], # analyst -- header, data str

        ## Method select detection
        self.parse_method_dict = {
                                'Company_desc': self.parse_company_desc,
                                'analyst_opinion': self.parse_analyst_opinion,
                                'industry': self.parse_industry_info,
                                'key_stats': self.parse_key_stats,

The full script, together with the YF API scraping, can be found at GitHub.

Extracting stocks info from yahoo finance using python (Updates)

Have made several updates to the script from previous posting. Firstly is the capability to sweep through all the stocks symbol for a .csv file. The list of stocks symbol is easily generated using the extract all symbol script describe in the previous post. Reading all the symbols from the CSV can be done using python Pandas as shown below.

        data_ext = YFinanceDataExtr()
        ## read  data from .csv file -- full list of stocks
        csv_fname = r'C:\pythonuserfiles\yahoo_finance_data_extract\stocklist.csv'
        stock_list = pandas.read_csv(csv_fname)
        # convert from pandas dataframe object to list
        stock_list = list(stock_list['SYMBOL'])
        #stock_list = ['S58.SI','S68.SI']

The second improvement is instead of keying all the individual properties that need to be extracted (as illustrated below), the list of properties can be read from a xls table using the xls_table_extract_module described in the following post.

original method to set the property in the url

    def form_cur_quotes_property_url_str(self):
        """ To form the properties/parameters of the data to be received for current quotes
            To eventually utilize the get_table_fr_xls.
            Current use default parameters.
            name(n0), symbol(s), the latest value(l1), open(o) and the close value of the last trading day(p)
            volumn (v), year high (k), year low(j)

            Further info can be found at :
        start_str = '&f='
        target_properties = 'nsl1opvkj'
        self.cur_quotes_property_portion_url =  start_str + target_properties

 New method: xls table format. (the xls illustrated here is the simplified version). The full property xls is in Github.


The data can be retrieved easily using the xls_table_extract_module hence easily forming the properties str by concat the tag together. The information required can be customized to the order based on the order of xls and the information required can be turned on and off using the comment tag ‘#’.  Note  some of the properties retrieved might not be in format that easy to parse and might result in extra column upon downloading. The portion of script to handle this is as described below.

    def form_cur_quotes_property_url_str_fr_excel(self):
        """ Required xls_table_extract_module.
            Get all the properties from excel table.
            Properties can be selected by comment out those properties not required.
            Also set the heeader: self.cur_quotes_parm_headers for the values.

        from xls_table_extract_module import XlsExtractor
        self.xls_property_data = XlsExtractor(fname = self.properties_excel_table, sheetname= 'Sheet1',
                                             param_start_key = 'stock_property//', param_end_key = 'stock_property_end//',
                                             header_key = '', col_len = 2)


        ## form the header
        self.cur_quotes_parm_headers = [n.encode() for n in self.xls_property_data.data_label_list]

        ## form the url str
        start_str = '&f='
        target_properties = ''.join([n[0].encode().strip() for n in self.xls_property_data.data_value_list])
        self.cur_quotes_property_portion_url =  start_str + target_properties

The last update enable the script to handle more than one url query (each query can handle up to 50 stocks). This enable the full sweep of all the stocks listed in the stocklist and downloaded it to single results file. A sweep of around 1000 stocks symbol take less than 3 mins (it also depends on the internet connection).

The updated script can be found at GitHub.
