Scraping housing prices using Python Scrapy Part 2

This is the continuation of the previous post on “Scraping housing prices using Python Scrapy“. In this session, we will use Xpath to retrieve the corresponding fields from the targeted website instead of just having the full html page. For a preview on how to extract the information from a particular web page, you can refer to the following post “Retrieving stock news and Ex-date from SGX using python“.

Parsing the web page using Scrapy will require the use of Scrapy spider “parse” function. To test out the function, it might be an hassle to run Scrapy crawl command each time you try out a field as this means making requests to the website every single time.

There are two ways to go about it. One way is to let Scrapy cache the data. The other is to make use of the html webpage downloaded in the previous session. I have not really try out caching the information using scrapy but it is possible to run using Scrapy Middleware. Some of the links below might help to provide some ideas.

  1. https://doc.scrapy.org/en/0.12/topics/downloader-middleware.html
  2. http://stackoverflow.com/questions/22963585/using-middleware-to-ignore-duplicates-in-scrapy
  3. http://stackoverflow.com/questions/40051215/scraping-cached-pages

For utilizing the downloaded copy of the html page which is what I have been using, the following script demonstrate how it is done. The downloaded page is taken from this property website link. Create an empty script and input the following snippets, run the script as normal python script.

    import os, sys, time, datetime, re
    from scrapy.http import HtmlResponse

    #Enter file path
    filename = r'targeted file location'

    with open(filename,'r') as f:
        html =  f.read()

    response = HtmlResponse(url="my HTML string", body=html) # Key line to allow Scrapy to parse the page

    item = dict()

    for sel in response.xpath("//tr")[10:]:
        item['id'] = sel.xpath('td/text()')[0].extract()
        item['block_add'] = sel.xpath('td/a/span/text()')[0].extract()
        individual_block_link = sel.xpath('td/a/@href')[0].extract()
        item['individual_block_link'] = response.urljoin(individual_block_link)
        item['date'] = sel.xpath('td/text()')[3].extract()

        price = sel.xpath('td/text()')[4].extract()
        price = int(price.replace(',',''))
        price_k = price/1000
        item['price'] = price
        item['price_k'] = price_k
        item['size'] = sel.xpath('td/text()')[5].extract()
        item['psf'] = sel.xpath('td/text()')[6].extract()
        #agent = sel.xpath('td/a/span/text()')[1].extract()
        item['org_url_str'] = response.url

        for k, v in item.iteritems():
            print k, v

Once verified there are no issue retrieving the various components, we can paste the portion to the actual Scrapy spider parse function. Remember to exclude the statement “response = HtmlResponse …”.

From the url, we noticed that the property search results are available in multiple pages. The idea is to traverse each page and obtain the desired information from each page. This would need Scrapy to know the next url to go to. To parse the information, the same method can be use to retrieve the url link to the next page.

Below show the parse function use in the Scrapy spider.py.

def parse(self, response):

    for sel in response.xpath("//tr")[10:]:
        item = ScrapePropertyguruItem()
        item['id'] = sel.xpath('td/text()')[0].extract()
        item['block_add'] = sel.xpath('td/a/span/text()')[0].extract()
        individual_block_link = sel.xpath('td/a/@href')[0].extract()
        item['individual_block_link'] = response.urljoin(individual_block_link)
        item['date'] = sel.xpath('td/text()')[3].extract()

        price = sel.xpath('td/text()')[4].extract()
        price = int(price.replace(',',''))
        price_k = price/1000
        item['price'] = price
        item['price_k'] = price_k
        item['size'] = sel.xpath('td/text()')[5].extract()
        item['psf'] = sel.xpath('td/text()')[6].extract()
        #agent = sel.xpath('td/a/span/text()')[1].extract()
        item['org_url_str'] = response.url

        yield item

    #get next page link
    next_page = response.xpath("//div/div[6]/div/a[10]/@href")
    if next_page:
        page_url = response.urljoin(next_page[0].extract())
        yield scrapy.Request(page_url, self.parse)

For the next post, I will share how to migrate the running of spider to Scrapy Cloud

Related Posts

  1. Scraping housing prices using Python Scrapy
  2. Retrieving stock news and Ex-date from SGX using python
Advertisements

Scraping housing prices using Python Scrapy

This post (and subsequent posts) show how to scrape the latest housing prices from the web using python Scrapy. As an example, the following website, propertyguru.com, is used. To start, select the criteria and filtering within the webpage to get the desired search results. Once done, copy the url link. Information from this url will be scraped using Scrapy. Information on installing Scrapy can be found from the  following post “How to Install Scrapy in Windows“.

For a guide of running Scrapy, you can refer to the Scrapy tutorial.  The following guidelines can be used for building a simple project.

  1. Create project
    scrapy startproject name_of_project
  2. Define items in items.py (temporary set a few fields)
    from scrapy.item import Item, Field

    class ScrapePropertyguruItem(Item):
        # define the fields for your item here like:
        name = Field()
        id = Field()
        block_add = Field()

  3. Create a spider.py. Open spider.py and input the following codes to get the stored html form of the scraped web.
    import scrapy
    from propertyguru_sim.items import ScrapePropertyguruItem #this refer to name of project

    class DmozSpider(scrapy.Spider):
        name = "demo"
        allowed_domains = ['propertyguru.com.sg']
        start_urls = [
           r'http://www.propertyguru.com.sg/simple-listing/property-for-sale?market=residential&property_type_code%5B%5D=4A&property_type_code%5B%5D=4NG&property_type_code%5B%5D=4S&property_type_code%5B%5D=4I&property_type_code%5B%5D=4STD&property_type=H&freetext=Jurong+East%2C+Jurong+West&hdb_estate%5B%5D=13&hdb_estate%5B%5D=14'
        ]
        def parse(self, response):
            filename = response.url.split("/")[-2] + '.html'
            print
            print
            print 'filename', filename

            with open(filename, 'wb') as f:
                f.write(response.body)

  4. Run the scrapy command “scrapy crawl demo” where “demo” is the spider name assigned.

You will notice that by setting the project this way, there will be error parsing the website. Some websites like the one above required an user agent to be set. In this case, you can add the user_agent to settings.py to have the scrapy run with an user agent.

BOT_NAME = 'propertyguru_sim'

SPIDER_MODULES = ['propertyguru_sim.spiders']
NEWSPIDER_MODULE = 'propertyguru_sim.spiders'

USER_AGENT = "Mozilla/5.0 (Windows NT 6.2; WOW64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/27.0.1453.93 Safari/537.36"

Run the script again with the updated code and you will see an html page appear in the project folder. Success.

In the next post, we will look at getting the individual components from the html page using xpath.

Simple Python Script to retrieve all stocks data from Google Finance Screener (Part 2)

Upgraded version from previous “Simple Python Script to retrieve all stocks data from Google Finance Screener“. The new version allows options to select the various stocks exchange including all US exchange and expand on the financial metrics present.

To run the script, you can simply run the following commands.

from google_screener_data_extract import GoogleStockDataExtract

hh = GoogleStockDataExtract()
hh.target_exchange = 'NASDAQ' #SGX, NYSE, NYSEMKT
hh.retrieve_all_stock_data()
hh.result_google_ext_df.to_csv(r'c:\data\temp.csv', index =False) #save filename

The new script allows easy installation via pip. To install:
pip install google_screener_data_extract

The script is also available in GitHub.

Retrieving Singapore housing (HDB) resale prices with Python

This post is more suited for Singapore context with the aim of retrieving the Housing Development Board (HDB) resale prices for the year 2015 grouped by different parts of Singapore. All the prices information are retrieved from the HDB main website. The website retrieves the past 1 yr records for each block or by postcode. Hence, in order to retrieve all the records, one would need to retrieve all the postcode in Singapore first. Below outline the list of information required in order to form the full picture.

  1. Retrieve the full postcode from following sg postcode database.
  2. The above only have postcode, next will have to merge the postcode to the actual address. This website also provide the search of post code and retrieve the corresponding address. You can automate using the same process with python, python pattern and pandas.
  3. Retrieve the HDB resale prices by iterating all the postcode retrieved from above.
  4. The optional steps will also be retrieving the Geocodes correspond to the post code so all the data can be put into a map. This post “Retrieving Geocodes from ZipCodes using Python and Selenium” describes the retrieval method.

The 1st code snippet will be applied to item 1, i.e.,  retrieving the post code. For item 2, it is a two steps process, first have to search the postcode, get the link and from the link, retrieve the address.


import pandas as pd
from pattern.web import  URL, extension

def retrieve_postal_code_fr_web_1(target_url, savefilelocation):
    """
        target_url (str): url from function.
        savefilelocation (str): full file path.
    """
    savefile = target_url.split('=')[-1] + '.csv'
    fullsavefile = os.path.join(savefilelocation,savefile)

    contents = URL(target_url).download()

    w = pd.read_html(contents)
    w[0].to_csv(fullsavefile, index =False)

The next snippet will describe the method to retrieve the HDB resale prices. By exploring the HDB website, the dataset are in the xml format, The url are as followed: http://services2.hdb.gov.sg/webapp/BB33RTIS/BB33SResaleTransMap?postal=<postcode>. For easy retrieval of data in xml format,  one way is to convert the xml to dict form and then convert to pandas dataframe object from the dict. This python module xmltodict will serve the required function.


import re, os, sys, datetime, time
import pandas as pd
import pattern
import xmltodict

from pattern.web import  URL, extension

class HDBResalesQuery(object):
    """
        For retrieving the resales prices from HDB webpage.
    """
    def __init__(self):
        """ List of url parameters -- for url formation """
        self.com_data_start_url = 'http://services2.hdb.gov.sg/webapp/BB33RTIS/BB33SResaleTransMap?postal='
        self.postal_portion_url = ''
        self.com_data_full_url = ''
        self.postal_list = [] #multiple postal code list

        ## storage
        self.single_postal_df = pd.DataFrame()
        self.multi_postal_df = pd.DataFrame()

        ## debugging
        self.en_print = 1

    def set_postal_code(self, postalcode):
        """ Set the postal code to url part.
            Set to self.postal_portion_url.
            Args:
                postalcode (str): can be str or int??
        """
        self.postal_portion_url = str(postalcode)

    def set_postal_code_list(self, postalcodelist):
        """ Set list of postal code. Set to self.postal_list
            Args:
                postalcodelist(list): list of postal code
        """
        self.postal_list = postalcodelist

    def form_url_str(self):
        """ Form the url str necessary to get the xml

        """
        self.com_data_full_url = self.com_data_start_url + self.postal_portion_url

    def get_com_data(self):
        """ Combine the url str and get html contents
        """
        self.form_url_str()
        if self.en_print: print self.com_data_full_url
        contents = URL(self.com_data_full_url).download()
        return contents

    def process_single_postal_code(self):
        """ process single postal code and retrieve the relevant information from HDB.

        """
        contents = self.get_com_data()
        if self.en_print: print contents
        obj = xmltodict.parse(contents)

        data_dict_list = []
        if obj['Datasets'].has_key('Dataset'):
            data_set = obj['Datasets']['Dataset']
            if type(data_set) == list:
                for single_data in data_set:
                    data_dict_list.append(dict(single_data))
            else:
                data_dict_list.append(dict(data_set))

        #Can convert to pandas dataframe w = pd.DataFrame(data_dict_list)
        self.single_postal_df = pd.DataFrame(data_dict_list)
        if self.en_print: print self.single_postal_df

    def process_mutli_postal_code(self):
        """ for processing multiple postal code.
        """
        self.multi_postal_df = pd.DataFrame()

        for postalcode in self.postal_list:
            if self.en_print: print 'processing postalcode: ', postalcode
            self.set_postal_code(postalcode)
            self.process_single_postal_code()
            if len(self.single_postal_df) == 0: #no data
                continue
            if len(self.multi_postal_df) == 0:
                self.multi_postal_df = self.single_postal_df
            else:
                self.multi_postal_df = self.multi_postal_df.append(self.single_postal_df)



if __name__ == '__main__':
        """ Trying out the class"""
        postallist = ['640525','180262']
        w = HDBResalesQuery()
        w.set_postal_code_list(postallist)
        w.process_mutli_postal_code()
        print w.multi_postal_df

Note that all the processes require large number of queries (110k) to the website. It is best to schedule it to retrieve in batches or the website will shut you out (identify you as a bot).

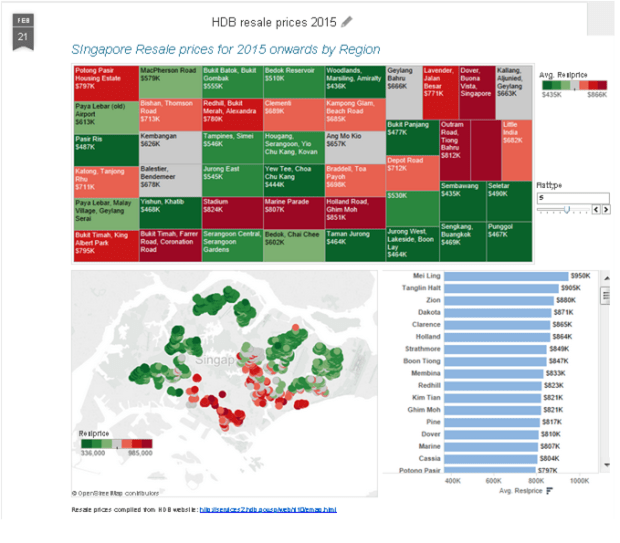

The following is the Tableau representation of all the data. It is still a prelim version.

HDB Resale Prices

Retrieving Geocodes from ZipCodes using Python and Selenium

Alternative to using GoogleMapAPI to retrieve the geo codes (Latitude and Longitude) from zip codes. This website allows batch processing of the zip code which make it very convenient for automated batch processing.

Below illustrate the general steps in retrieving the data from the website which involve just enter the zipcode, press the “geocode” button and get the output from secondary text box.

Batch Geocode processing website

The above tasks can be automated using Selenium and python which can emulate the users action by using just a few lines of codes. A preview of the code are as shown below. You will notice that the it calls each element [textbox, button etc] by id. This is also an advantage of this website which provide the id tag for each required element. The data retrieved are converted to Pandas object for easy processing.

Currently, the waiting time is set manually by the users.  The script can be further modified to retrieve the number of data being processed before retrieving the final output. Another issue is that this website also make use of GoogleMapAPI engine which restrict the number of query (~2500 per day).  If require massive query of data, one way is to schedule the script to run at fix interval each day or perhaps query from multiple websites that have this conversion features.

For my project, I may need to pull more than 100,000 data set. Pulling only 2500 query is relatively limited even though I can run it on multiple computers. Would welcome suggestions.


import re, os, sys, datetime, time
import pandas as pd
from selenium import webdriver
from selenium.webdriver import Firefox

from time import gmtime, strftime

def retrieve_geocode_fr_site(postcode_list):
    """ Retrieve batch of geocode based on postcode list.
        Based on site: http://www.findlatitudeandlongitude.com/batch-geocode/#.VqxHUvl96Ul
        Args:
            postcode_list (list): list of postcode.
        Returns:
            (Dataframe): dataframe containing postcode, lat, long

        NOte: need to calcute the time --. 100 entry take 94s

    """
    ## need to convert input to str
    postcode_str = '\n'.join([str(n) for n in postcode_list])

    #target website
    target_url = 'http://www.findlatitudeandlongitude.com/batch-geocode/#.VqxHUvl96Ul'

    driver = webdriver.Firefox()
    driver.get(target_url)

    #input the query to the text box
    inputElement = driver.find_element_by_id("batch_in")
    inputElement.send_keys(postcode_str)

    #press button
    driver.find_element_by_id("geocode_btn").click()

    #allocate enough time for data to complete
    # 100 input ard 2-3 min, adjust according
    time.sleep(60*10)

    #retrieve ooutput
    output_data = driver.find_element_by_id("batch_out").get_attribute("value")
    output_data_list = [n.split(',') for n in output_data.splitlines()]

    #processing the output
    #last part create it to a pandas dataframe object for easy processng.
    headers = output_data_list.pop(0)
    geocode_df = pd.DataFrame(output_data_list, columns = headers)
    geocode_df['Postcode'] = geocode_df['"original address"'].str.strip('"')
    geocode_df = geocode_df.drop('"original address"',1)

    ## printing a subset
    print geocode_df.head()

    driver.close()

    return geocode_df





Simple Python Script to retrieve all stocks data from Google Finance Screener

A simple python script to retrieve key financial metrics for all stocks from Google Finance Screener. Google screener have more metrics avaliable compared to SGX screener and also contains comprehensive stocks data for various stock exchanges.

In addition, retrieving data from Google Screener is much faster compared to data retrieved from Yahoo Finance or Yahoo Finance API (See the respective blog post from links).

The reason for the fast retrieval is that the information are stored in the form of single json format for all stocks such that it will reduce the number of request calls and downloading. Being in json format also allows easy conversion to a Pandas Dataframe object.

To retrieve the json url of the stock data, go to the Google Screener and select the criteria (like what is normally done when setting up a filter).  Open up the criteria to full range of the particular metrics. In this way, all the stocks will be selected instead of being filtered off. Using the developer tab of any browser, retrieve the full url. For further description of how to retrieve the url, you can refer to the following post: “Getting historic financial statistics of stocks using Python

Two points to take note:  Firstly the URL only include stock list from 1 -20 due to page setting. Set the end stock to a large number eg 3000 (in blue) to include the full stock list. Below is a sample of the corresponding url.

https://www.google.com/finance?output=json&start=0&amp;num=3000&noIL=1&q=[%28exchange%20%3D%3D%20%22SGX%22%29%20%26%20%28dividend_next_year%20%3E%3D%200%29%20%26%20%28dividend_next_year%20%3C%3D%201.46%29%20%26%20%28price_to_sales_trailing_12months%20%3C%3D%20850%29]&restype=company&ei=BjE7VZmkG8XwuASFn4CoDg

Secondly, as Google only allows 12 criteria to be set at any one go, you would need to repeat process multiple times to obtain all the parameters. Repeat the above process by selecting different criteria and join all the parameters together.

Once the url is formed, the same process is used when scraping web data using python as described in most posts in this blog. The main tools are Python Pandas and Python Pattern. Python Pattern is to help with the json file download and Pandas to convert the json file to Data frame which can then be used to join with other parameters.

The difficult part of the script is to obtain the url. Once the url is known, other methods can be employed to download and read the data from the json file.

The script (for all stocks in Singapore) is available in Github. Due to the long url format, the script will form the full url by concatenating the start and end url with the middle portion (which are all the criteria) stored in a file. File is also found in Github.

 (Update: Thanks to Bob1: the start url is changed to https://finance.google.com/finance?output=json&start=0&num=3000&noIL=1&q=)

Retrieving historical financial data from MorningStar Using Python

Retrieving historical financial data from MorningStar Using PythonMorning star website contains all the historical financial data such as Net income, EPS (earning per share) per year over 10 years for each stocks. It also provides the historical valuation data such as historical P/E and P/B which are quite difficult to source for. The purpose of the following script is to retrieve the historical data of all desired stocks in a format that is easily represented in Tableau for interactive representation. Below stock information are only catered for Singapore stocks but can be easily changed to other regions as will be shown below.

The first part is to retrieve the company historical financial stats. MorningStar website provides an option to download the data in excel or CSV format. Retrieving in csv format allows easy cleaning and subsequent formatting of the data. To obtain the url for the excel downloading, use any browser and open the developer tab. The network tab will display the url for the excel after pressing on the excel/csv download button. The url will be as below format. Note the region (in blue) can be changed for stocks in another region.

http://financials.morningstar.com/ajax/exportKR2CSV.html?&callback=?&t=XSES:STOCKSYMBOL&region=sgp&culture=en-US&cur=&order=asc

To download and process the information, two major modules are required: python pattern and Python Pandas. Python pattern to handle most of the HTML calls and requests while Pandas to handle the data cleaning and formatting.

For the first part of data extraction, the downloading will be in csv format and using pandas to read the csv. A couple of things to take notes for pulling the data for the first set.

  1. Due to the different line formats, some of the lines are skipped when using pandas to read from csv.
  2. Revenue, income and dividend may be in native currencies for different stocks hence giving rise to different column names (Column names will have the currency displayed). For each of the different currencies, remove the currencies label and consolidate all under same column and extra column for the currency values.
  3. The excel default to two decimal places. Extra calculation are needed to get the actual values without rounding off.

For the second part of retrieving the historical valuation, the method of getting the table will be different as there is no default csv file to be download. In this case, will have to make use of the pandas io html table read function. This pandas method will convert any table like object (html tag td, tr) in website to DataFrame. Some processing is required when pulling this table as it is not a conventional table format. It requires ignoring some lines, renaming the columns and transposing the table.

pandas.io.html.read_html(url_html, tupleize_cols = True,header=0 )

The process is looped over the various stocks hence the full range of stocks can be retrieved. In addition, the information can be combined with the SG company stock information such as industries etc. Information on how to retrieve the SG company stock information such as current price, current valuation etc are available in the following post “Retrieving stock news and Ex-date from SGX using python”.

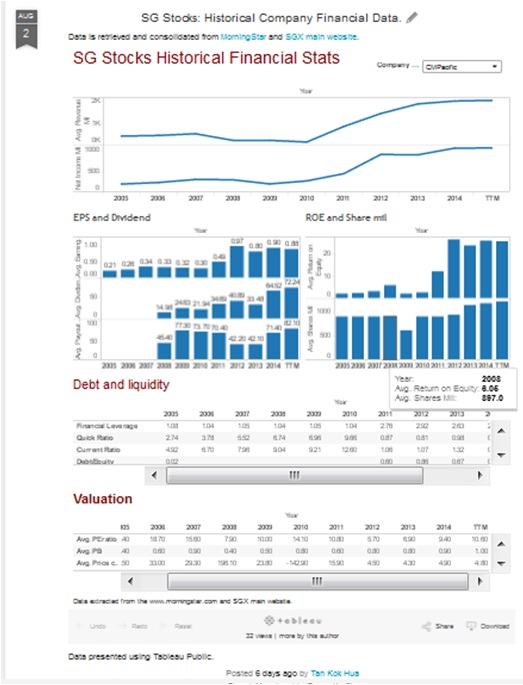

The full data can be displayed in Tableau as shown bleow. You can also view the interactive mode (WordPress does not allow interactive mode) in my other blog. The script are available  in GitHub.

blogview



Python Integrated Stock data Retrieval and Stock Filter

This post aims to summarize all the works described in previous posts and shows a consolidated python module that can retrieve multiple stock data sets and act as a simple stock filter. The flowchart below shows the full steps taken to run a filter. If using the alternative time-saving approach as show in the flow chart, the time to scan through around 500 stocks would take less than 15 min. It can generate different series of filtered stocks depending on the list of criteria files created and can be scheduled to run each day prior to the market opening.

Python Integrated Stock retrieval and filter

The list below described how individual scripts are created at each posts.

  1. Getting most recent prices and stock info from Yahoo API: “Extracting stocks info from yahoo finance using python (Updates)”
  2. Criteria filtering: “Filter stocks data using python”
  3. Historical data/dividend several alternatives:
    1. Scraping from Yahoo API: “Getting historical stock quotes and dividend Info using python”.
    2. Scraping using YQL: “Get historical stock prices using Yahoo Query Language (YQL) and Python”.
    3. Retrieve from database: “Storing and Retrieving Stock data from SQLite database”.
  4. Company info and company financial data several alternatives:
    1. Direct scraping: “Direct Scraping Stock Data from Yahoo Finance”
    2. Scraping using YQL:“Scraping Company info using Yahoo Query Language (YQL) and Python”.
  5. Web scraping for stock tech analysis. “Basic Stock Technical Analysis with python”.

Below shows a sample run with a few sets of criteria. The qty left after each filtered parameters are displayed. Finally the results sample from one of the run, the “strict” criteria, are shown. Note that the filtered results depends on the accuracy and also whether the particular parameter is present in Yahoo database.

The combined run script is Stock_Combine_info_gathering.py and it is avaliable with rest of the modules at the GitHub.

 List of filter for the criteria: lowprice
—————————————-
NumYearPayin4Yr > 3
PERATIO > 4
Qtrly Earnings Growth (yoy) > 0
PERATIO < 15
Pre3rdYear_avg greater OPEN 0 # means current  price lower than 3yr ago

Processing each filter…
—————————————-
Current Screen criteria: Greater NumYearPayin4Yr
Modified_df qty: 142
Current Screen criteria: Greater PERATIO
Modified_df qty: 110
Current Screen criteria: Less PERATIO
Modified_df qty: 66
Current Screen criteria: Compare Pre3rdYear_avg,OPEN
Modified_df qty: 19

END

List of filter for the criteria: highdivdend
—————————————-
NumYearPayin4Yr > 3
LeveredFreeCashFlow > -1
TRAILINGANNUALDIVIDENDYIELDINPERCENT > 5
PRICEBOOK < 1.5
TrailingAnnualDividendYieldInPercent < 100
TotalDebtEquity < 50

Processing each filter…
—————————————-
Current Screen criteria: Greater NumYearPayin4Yr
Modified_df qty: 142
Current Screen criteria: Greater LeveredFreeCashFlow
Modified_df qty: 107
Current Screen criteria: Greater TRAILINGANNUALDIVIDENDYIELDINPERCENT
Modified_df qty: 30
Current Screen criteria: Less PRICEBOOK
Modified_df qty: 25
Current Screen criteria: Less TotalDebtEquity
Modified_df qty: 20
END

List of filter for the criteria: strict
—————————————-
CurrentRatio > 1.5
EPSESTIMATECURRENTYEAR > 0
DilutedEPS > 0
ReturnonAssets > 0
NumYearPayin4Yr > 2
PERATIO > 4
LeveredFreeCashFlow > 0
TRAILINGANNUALDIVIDENDYIELDINPERCENT > 2
PERATIO < 15
TotalDebtEquity < 70
PRICEBOOK < 1.5
PEGRatio < 1.2
YEARHIGH greater OPEN 0

Processing each filter…
—————————————-
Current Screen criteria: Greater CurrentRatio
Modified_df qty: 139
Current Screen criteria: Greater EPSESTIMATECURRENTYEAR
Modified_df qty: 42
Current Screen criteria: Greater DilutedEPS
Modified_df qty: 41
Current Screen criteria: Greater ReturnonAssets
Modified_df qty: 37
Current Screen criteria: Greater NumYearPayin4Yr
Modified_df qty: 32
Current Screen criteria: Greater PERATIO
Modified_df qty: 32
Current Screen criteria: Greater LeveredFreeCashFlow
Modified_df qty: 20
Current Screen criteria: Greater TRAILINGANNUALDIVIDENDYIELDINPERCENT
Modified_df qty: 15
Current Screen criteria: Less PERATIO
Modified_df qty: 8
Current Screen criteria: Less TotalDebtEquity
Modified_df qty: 7
Current Screen criteria: Less PRICEBOOK
Modified_df qty: 5
Current Screen criteria: Less PEGRatio
Modified_df qty: 5
Current Screen criteria: Compare YEARHIGH,OPEN
Modified_df qty: 5
END

 Results from “strict” criteria:

sample stock results





Get historical stock prices using Yahoo Query Language (YQL) and Python

Previous post demonstrated pulling company balanced sheets and financial records using Yahoo Query Language (YQL) . Historical prices which is used to calculate price trends can also be obtained from YQL using following table “yahoo.finance.historicaldata”. The YQL statement is as followed:

select * from yahoo.finance.historicaldata where symbol in (“stock_sym1″,”stock_sym2”) and startDate = “2009-09-11” and endDate = “2010-03-10”

Note that for this method,  multiple stocks can be retrieved at a time as highlighted in blue. This is a faster way compared to the method described in previous post using the Yahoo Finance API where only one stock’s data can be retrieved at a single run. However, the disadvantage of this method is that the time interval cannot be very large. Hence, this is for cases where there is a need to add more recent data of large quantity of stocks on a daily basis, for example, to a database.

The url generated from this query is as followed. The blue portion is the stock symbols, the orange is the start date and the green is the end date.

https://query.yahooapis.com/v1/public/yql?q=select%20*%20from%20yahoo.finance.historicaldata%20where%20symbol%20in%20(%225FH.SI%22%2C%22A31.SI%22)%20and%20startDate%20%3D%20%222015-02-19%22%20and%20endDate%20%3D%20%222015-02-24%22&format=json&diagnostics=true&env=store%3A%2F%2Fdatatables.org%2Falltableswithkeys&callback=

To retrieve the above using python, the same method can be employed as what is done previously by constructing the url and downloading the data using PATTERN module to download and processed the json information. Json data  can be easily transformed to a pandas Data frame for further processing which can also be easily inputted to sql using the Pandas to_sql function. Note that the url would need to consist of the stock symbols, the start and end date.




Getting historical financial statistics of stock using python

Morningstar.com provides useful information of stocks particularly financial ratio such as EPS, P/E etc breakdown to span of several years. It also provides an option for user to export all the data to a .csv file. This can be achieved by pressing the “export” button on the particular stock page. However, if there is a need to retrieve a series of stock data, users will have to visit the corresponding stock page and download the data one by one.

MorningStar

Below post is one way to retrieve the historical financial data of all target stocks. The first step will be to obtain the request url to activate the download without physically pressing the “export” button. To obtain the url, you can use the developer tools under Chrome web browser, press the network tab and monitor the ALL tab. Once the export button is pressed, the ALL tab will display the url corresponding to the request send. Example fo the url use for the request is as followed:

http://financials.morningstar.com/ajax/exportKR2CSV.html?&callback=?&t=XSES:N4E&region=sgp&culture=en-US&cur=&order=asc

The blue section is the stock symbol. By changing the stock symbol, we can use the same url to retrieve all the financial data for different stocks. The url formation will be similar to what is mentioned in previous posts and the downloading can be achieved using python pattern module. After downloading the .csv file, the data can be post processed using python pandas.

Normally, the data will be easier to process if the data can be made into a Pandas Dataframe object which will then be used for joining and transforming purpose. However, the raw data downloaded (one csv for each stock) has all the headers in the first column instead of along the rows so we would need to transpose the data set. However, once transpose, the pandas will not be able to take care of columns that are non-unique. It can handle duplicate columns easily the moment it read from a csv file so the easy way is to re-write the transpose data back to the same file and read back the data again. Once read back using the Pandas.read_csv function, the result will be a dataframe object with the duplicate columns being taken care of. The columns can be rename after that for more desired column names. Below shows the section of code that does this.

    def process_dataset(self):
        """ Processed the data set by converting the csv to dataframe and attached the information for various stocks.

        """

        ## Rows with additional headers are skipped
        try:
            self.target_stock_data_df =  pandas.read_csv(self.ms_stats_extract_temp_csv, header =2, index_col = 0, skiprows = [19,20,31,41,42,43,48,58,53,64,65,72,73,95,101,102])
        except:
            print 'problem downloading files. '
        self.target_stock_data_df = self.target_stock_data_df.transpose().reset_index()
        self.target_stock_data_df["SYMBOL"] = self.com_data_stock_portion_url
        #after transpose save back to same file and call again for column duplication problem
        self.target_stock_data_df.to_csv(self.ms_stats_extract_temp_csv_transpose, index =False)
        self.target_stock_data_df =  pandas.read_csv(self.ms_stats_extract_temp_csv_transpose)
        #rename columns
        self.target_stock_data_df.rename(columns={'Year over Year':'Revenue yoy','3-Year Average':'Revenue 3yr avg',
                                                '5-Year Average':'Revenue 5yr avg','10-Year Average':'Revenue 10yr avg',

                                                'Year over Year.1':'Operating income yoy','3-Year Average.1':'Operating income 3yr avg',
                                                '5-Year Average.1':'Operating income 5yr avg','10-Year Average.1':'Operating income 10yr avg',

                                                'Year over Year.2':'Net income yoy','3-Year Average.2':'Net income 3yr avg',
                                                '5-Year Average.2':'Net income 5yr avg','10-Year Average.2':'Net income 10yr avg',

                                                'Year over Year.3':'EPS yoy','3-Year Average.3':'EPS 3yr avg',
                                                '5-Year Average.3':'EPS 5yr avg','10-Year Average.3':'EPS 10yr avg',},
                                       inplace =True)

        if len(self.com_data_allstock_df) == 0:
            self.com_data_allstock_df = self.target_stock_data_df
        else:
            self.com_data_allstock_df = pandas.concat([self.com_data_allstock_df,self.target_stock_data_df],ignore_index =True)


Once the data frame is formed, it can be used to perform various analysis such as checking if the stock have positive EPS growth over the years or the trend of P/E over the years. Below code include the get_trend function that will look at the historic EPS over time and whether it improves over time for a particular company.

import re, os, sys, math, time, datetime, shutil
import pandas
from pattern.web import URL, DOM, plaintext, extension, Element, find_urls

class MS_StatsExtract(object):
    """
        Using morning star ajax call.
        Can only get one stock at a time.
    """
    def __init__(self):
        """ List of url parameters -- for url formation """
        self.com_data_start_url = 'http://financials.morningstar.com/ajax/exportKR2CSV.html?&callback=?&t=XSES:'
        self.com_data_stock_portion_url = ''
        self.com_data_stock_portion_additional_url = ''# for adding additonal str to the stock url.
        self.com_data_end_url = '&region=sgp&culture=en-US&cur=&order=asc'
        self.com_data_full_url = ''
        self.stock_list = ''#list of stock to parse.

        ## printing options
        self.__print_url = 0

        ## temp csv storage path
        self.ms_stats_extract_temp_csv = r'c:\data\temp\ms_stats.csv'
        self.ms_stats_extract_temp_csv_transpose = r'c:\data\temp\ms_stats_t.csv'

        ## Temp Results storage
        self.target_stock_data_df = object()

        ## full result storage
        self.com_data_allstock_df = pandas.DataFrame()
        self.hist_company_data_trends_df = pandas.DataFrame()

    def set_stock_sym_append_str(self, append_str):
        """ Set additional append str to stock symbol when forming stock url.
            Set to sel.cur_quotes_stock_portion_additional_url.
            Mainly to set the '.SI' for singapore stocks.
            Args:
                append_str (str): additional str to append to stock symbol.
        """
        self.com_data_stock_portion_additional_url = append_str

    def set_target_stock_url(self, stock_sym):
        """ Set the target stock. Single stock again.
            Set to self.com_data_stock_portion_url
            Args:
                stock_sym (str): Stock symbol.
        """
        self.com_data_stock_portion_url = stock_sym

    def set_stocklist(self, stocklist):
        """ Set list of stocks to be retrieved.
            Args:
                stocklist (list): list of stocks to be retrieved.
        """
        self.stock_list = stocklist

    def form_url_str(self):
        """ Form the url str necessary to get the .csv file
            May need to segregate into the various types.
            Args:
                type (str): Retrieval type.
        """
        self.com_data_full_url = self.com_data_start_url + self.com_data_stock_portion_url +\
                                   self.com_data_end_url

    def get_com_data(self):
        """ Combine the cur quotes function.
            Formed the url, download the csv, put in the header. Have a dataframe object.
            Each one is one stock.
        """
        self.form_url_str()
        if self.__print_url: print self.com_data_full_url

        ## here will process the data set
        self.downloading_csv()

    def downloading_csv(self):
        """ Download the csv information for particular stock.

        """
        self.download_fault = 0

        url = URL(self.com_data_full_url)
        f = open(self.ms_stats_extract_temp_csv, 'wb') # save as test.gif
        try:
            f.write(url.download())#if have problem skip
        except:
            if self.__print_download_fault: print 'Problem with processing this data: ', self.com_data_full_url
            self.download_fault =1
        f.close()

    def process_dataset(self):
        """ Processed the data set by converting the csv to dataframe and attached the information for various stocks.

        """

        ## Rows with additional headers are skipped
        try:
            self.target_stock_data_df =  pandas.read_csv(self.ms_stats_extract_temp_csv, header =2, index_col = 0, skiprows = [19,20,31,41,42,43,48,58,53,64,65,72,73,95,101,102])
        except:
            print 'problem downloading files. '
        self.target_stock_data_df = self.target_stock_data_df.transpose().reset_index()
        self.target_stock_data_df["SYMBOL"] = self.com_data_stock_portion_url
        #after transpose save back to same file and call again for column duplication problem
        self.target_stock_data_df.to_csv(self.ms_stats_extract_temp_csv_transpose, index =False)
        self.target_stock_data_df =  pandas.read_csv(self.ms_stats_extract_temp_csv_transpose)
        #rename columns
        self.target_stock_data_df.rename(columns={'Year over Year':'Revenue yoy','3-Year Average':'Revenue 3yr avg',
                                                '5-Year Average':'Revenue 5yr avg','10-Year Average':'Revenue 10yr avg',

                                                'Year over Year.1':'Operating income yoy','3-Year Average.1':'Operating income 3yr avg',
                                                '5-Year Average.1':'Operating income 5yr avg','10-Year Average.1':'Operating income 10yr avg',

                                                'Year over Year.2':'Net income yoy','3-Year Average.2':'Net income 3yr avg',
                                                '5-Year Average.2':'Net income 5yr avg','10-Year Average.2':'Net income 10yr avg',

                                                'Year over Year.3':'EPS yoy','3-Year Average.3':'EPS 3yr avg',
                                                '5-Year Average.3':'EPS 5yr avg','10-Year Average.3':'EPS 10yr avg',},
                                       inplace =True)

        if len(self.com_data_allstock_df) == 0:
            self.com_data_allstock_df = self.target_stock_data_df
        else:
            self.com_data_allstock_df = pandas.concat([self.com_data_allstock_df,self.target_stock_data_df],ignore_index =True)

    def get_com_data_fr_all_stocks(self):
        """ Cater for all stocks. Each stock is parse one at a time.
        """
        self.com_data_allstock_df = pandas.DataFrame()

        for stock in self.stock_list:
            print 'Processing stock:', stock
            self.set_target_stock_url(stock)
            self.get_com_data()
            self.downloading_csv()
            self.process_dataset()

    ## process the data, group by each symbol and take the last 3-5 years EPS year on year??
    def get_trend_data(self):
        """ Use for getting trends data of the dataset.
            Separate to two separate type. One is looking at gain in yoy gain, which means the gain of EPS eg is higher this year over the last as
            compared to the EPS gain of last year over the previous one.
            The other is positive gain which look for gain of company over year.
            may have accel growth if starting is negative

        """
        grouped_symbol = self.com_data_allstock_df.groupby("SYMBOL")

        self.hist_company_data_trends_df = pandas.DataFrame()
        for label in ['EPS yoy','Revenue yoy','Net income yoy']:
            for n in range(9,5,-1):
                if n == 9:
                    prev_data = grouped_symbol.nth(n)[label]
                    accel_growth_check = (prev_data == prev_data) #for EPS growht increase every eyar
                    normal_growth_check =  (prev_data >0) #for normal increase
                    continue
                current_data = grouped_symbol.nth(n)[label]
                accel_growth_check = accel_growth_check & (current_data <= prev_data)
                normal_growth_check = normal_growth_check & (current_data >0)
                prev_data = current_data

            accel_growth_check = accel_growth_check.to_frame().rename(columns = {label: label + ' 4yr_accel'}).reset_index()
            normal_growth_check = normal_growth_check.to_frame().rename(columns = {label: label + ' 4yr_grow'}).reset_index()

            both_check_df =  pandas.merge(accel_growth_check, normal_growth_check, on = 'SYMBOL' )

            if len(self.hist_company_data_trends_df) ==0:
                self.hist_company_data_trends_df = both_check_df
            else:
                self.hist_company_data_trends_df = pandas.merge(self.hist_company_data_trends_df, both_check_df, on = 'SYMBOL' )

    def modify_stock_sym_in_df(self):
        """ Modify the stock sym in df especially for the Singapore stock where it require .SI to join in some cases.

        """
        self.hist_company_data_trends_df['SYMBOL']= self.hist_company_data_trends_df['SYMBOL'].astype(str) +'.SI'

    def strip_additional_parm_fr_stocklist(self, stocklist, add_parm = '.SI'):
        """ Strip the addtional paramters from the stock list. True in case where the input is XXX.SI and morning star do not required the additioanl SI.
            Args:
                stocklist (list): list of stock sym.
            Kwargs:
                add_parm (str): string to omit (.SI)

        """
        return [re.search('(.*)%s'%add_parm, n).group(1) for n in stocklist]

if __name__ == '__main__':

    choice  = 4

    if choice ==2:

        pp = MS_StatsExtract()
        pp.set_stocklist(['BN4','BS6','N4E','U96'])
        pp.get_com_data_fr_all_stocks()
        pp.get_trend_data()
        pp.modify_stock_sym_in_df()
        print pp.hist_company_data_trends_df
